Water System Monitoring - updates

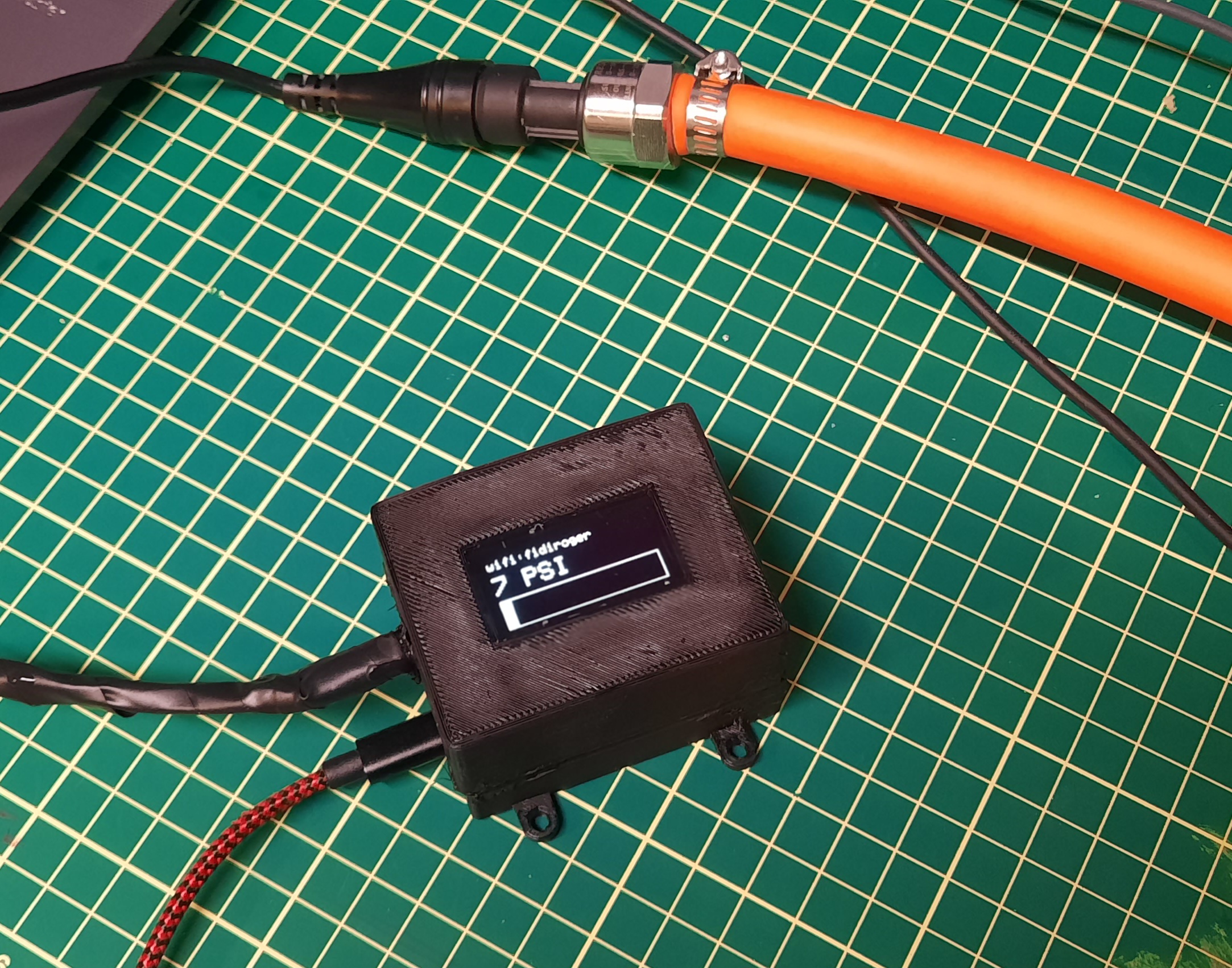

For this project I needed a way to confirm the water pump at a remote location was functioning properly over time. The goal was to ensure the pressure is kept at a consistent 40 psi.



The solution was relatively inexpensive ($15 in parts) for an easily assembled unit using an automotive pressure sensor. The pressure sensor is wired to a ADS1115 module which then converts to voltage back to a pressure reading. The pressure reading is sent every 5 minutes to a remote server which logs the data and makes the readings available through a web page with line charts.



The server is an HP Elitedesk Pro mini pc with linux running through cloudflare (also free).



Chart on server showing pressure readings over last 2 days


Components:



ESP32 code written in Platform IO

#include <Wire.h>
#include <Adafruit_ADS1X15.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SH110X.h>

#include <SPI.h>
#include <WiFi.h>
#include <HTTPClient.h>
#include <WiFiClientSecure.h>
#include <EEPROM.h>

int activeConnection = 1;
String activeSSID = "";
// Alternate display info
unsigned long lastInfoSwitch = 0;
bool showWifiInfo = true;

// hansen
const String ssid1 = "xxxx";
const String password1 = "xxx";

// silo
const String ssid2 = "xxxx";
const String password2 = "xxxx";

const String heartbeatUrl = "https://xxxx.xxxx.ca/silopower/heartbeat.php";
const String pressureUrl = "https://xxxx.xxxx.ca/silopower/set_water_pressure.php?data=";

#define EEPROM_SIZE 4
int eepromPingsAddress = 0;
float totalServerPings = 0;
int eepromFailedPingsAddress = 1;
float totalServerPingFails = 0;
int eepromActiveConnection = 1;

const int pulseRate = 1000; // loop runs once per second

const int serverSendInterval = 10;                     // 10 minutes between sending a pressure update to the server
const int samplesPerReading = 60 * serverSendInterval; // every x minutes send a sample to the server

int loopCount = 0;

String payload = "";
int httpCode = 0;
bool wifiConnected = false;
bool wifiPaused = false;
int wifiPausedTick = 0;
bool wifiSleeping = false;
bool debug = false; // when true server does not update
bool serverFailed = false;
int wifiConnectionAttempts = 0;

HTTPClient https;
WiFiClientSecure client;

// --- Display setup ---
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
Adafruit_SH1106G display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

// --- ADS1115 setup ---
Adafruit_ADS1115 ads;

// --- Voltage divider ratio ---
// You said 5V → 3.4V at A0, so gain = 3.4/5.0 = 0.68
const float dividerGain = 3.4f / 5.0f; // ≈0.68

// Sensor parameters (0.5–4.5 V = 0–100 psi)
const float sensorMinV = 0.5;
const float sensorMaxV = 4.5;
const float psiMax = 100.0;

// Burst sample settings
const int NUM_SAMPLES = 50;
const float TRIM_FRACTION = 0.20f;
const float ALPHA = 0.2f; // EMA smoothing

float psiFiltered = 0.0f;

float readPsiTrimmed();

void setWifiSleepMode(bool sleepMode);

bool connectToWiFi();

String wl_status_to_string(wl_status_t status);

// --- Zero calibration ---
float zeroOffset = 0.0f;

void calibrateZero()
{
  float psiNow = readPsiTrimmed();
  zeroOffset = psiNow; // store offset
  Serial.print("Zero calibrated at: ");
  Serial.println(zeroOffset, 2);
}

float psiCorrected(float psiRaw)
{
  float psi = psiRaw - zeroOffset;
  if (psi < 0)
    psi = 0;
  if (psi > psiMax)
    psi = psiMax;
  return psi;
}

// --- Setup ---
void setup()
{
  Serial.begin(115200);
  Wire.begin(21, 22);

  delay(5000);

  Serial.println("Starting PSI Sensor...");
  // Init display
  if (!display.begin(0x3C, true))
  {
    Serial.println("SH1106G not found");
    while (1)
      ;
  }
  display.clearDisplay();
  display.setTextColor(SH110X_WHITE);
  display.setTextSize(1);
  display.setCursor(0, 20);
  display.println("PSI Sensor Init...");
  display.display();

  // Init ADS1115
  if (!ads.begin(0x48))
  {
    Serial.println("ADS1115 not found");
    while (1)
      ;
  }
  ads.setGain(GAIN_ONE); // ±4.096 V range
  ads.setDataRate(RATE_ADS1115_128SPS);

  display.setCursor(0, 40);
  display.println("ADS1115 Init...");
  display.display();

  delay(1000);

  // Auto-zero on startup (sensor vented to atmosphere)
  calibrateZero();

  // Init EEPROM
  EEPROM.begin(EEPROM_SIZE);

  activeConnection = EEPROM.read(eepromActiveConnection);

  Serial.print("eepromActiveConnection :");
  Serial.println(activeConnection);

  if (isnan(activeConnection))
  {
    activeConnection = 1;
  }

  if (activeConnection == 0)
  {
    activeConnection = 1;
  }

  if (activeConnection > 2)
  {
    activeConnection = 2;
  }
  Serial.print("activeConnection: ");
  Serial.println(activeConnection);

  float pingData = EEPROM.readFloat(eepromPingsAddress);
  if (isnan(pingData))
  {
    pingData = 0;
  }
  totalServerPings = pingData;
  EEPROM.end();
  EEPROM.begin(EEPROM_SIZE);
  float pingFailData = EEPROM.readFloat(eepromFailedPingsAddress);
  if (isnan(pingFailData))
  {
    pingFailData = 0;
  }
  totalServerPingFails = pingFailData;
  EEPROM.end();

  if (!connectToWiFi()) {
    delay(2000);
    WiFi.disconnect();
    delay(1000);
    if (activeConnection == 1) {
      activeConnection = 2;
    } else {
      activeConnection = 1;
    }
    // Try a second time
    if (!connectToWiFi()) {
      delay(2000);
      WiFi.disconnect();
      delay(1000);
      // Optionally, print a message or handle failure here
      Serial.println("WiFi connection failed after two attempts.");
    }
  }

  delay(2000); // Pause for 2 seconds
}

// --- Conversion helpers ---
float countsToVolts(int16_t counts) { return ads.computeVolts(counts); }

float voltsToPsi(float v_ads)
{
  float v_sensor = v_ads / dividerGain; // undo divider (÷0.68)
  float psi = (v_sensor - sensorMinV) * (psiMax / (sensorMaxV - sensorMinV));
  if (psi < 0)
    psi = 0;
  if (psi > psiMax)
    psi = psiMax;
  return psi;
}

// --- Robust read with trimmed mean ---
float readPsiTrimmed()
{
  static int16_t buf[NUM_SAMPLES];

  ads.setDataRate(RATE_ADS1115_860SPS); // fast burst

  for (int i = 0; i < NUM_SAMPLES; i++)
  {
    buf[i] = ads.readADC_SingleEnded(0);
    delayMicroseconds(400);
  }

  ads.setDataRate(RATE_ADS1115_128SPS);

  // Sort samples
  for (int i = 1; i < NUM_SAMPLES; i++)
  {
    int16_t key = buf[i];
    int j = i - 1;
    while (j >= 0 && buf[j] > key)
    {
      buf[j + 1] = buf[j];
      j--;
    }
    buf[j + 1] = key;
  }

  // Trim extremes
  int trim = (int)(NUM_SAMPLES * TRIM_FRACTION);
  if (trim * 2 >= NUM_SAMPLES)
    trim = (NUM_SAMPLES - 1) / 2;
  long sum = 0;
  int count = 0;
  for (int i = trim; i < NUM_SAMPLES - trim; i++)
  {
    sum += buf[i];
    count++;
  }
  float avgCounts = (float)sum / (float)count;

  float v_ads = countsToVolts((int16_t)avgCounts);
  return voltsToPsi(v_ads);
}

bool connectToWiFi()
{

  String activeSsid = "";
  String activePassword = "";

  if (activeConnection == 1)
  {
    activeSsid = ssid1;
    activePassword = password1;
  }
  else if (activeConnection == 2)
  {
    activeSsid = ssid2;
    activePassword = password2;
  }

  Serial.print("Connecting to WiFi: ");
  Serial.println(activeSsid);

  WiFi.begin(activeSsid, activePassword);

  while (WiFi.status() != WL_CONNECTED && wifiConnectionAttempts < 20)
  {
    delay(500);
    Serial.print(".");
    wifiConnectionAttempts++;
  }

  wifiConnectionAttempts = 0;

  if (WiFi.status() == WL_CONNECTED)
  {
    Serial.println("\nConnected to WiFi");
    Serial.print("IP Address: ");
    Serial.println(WiFi.localIP());
    wifiConnected = true;

    EEPROM.begin(EEPROM_SIZE);
    EEPROM.write(eepromActiveConnection, activeConnection);
    EEPROM.commit();
    EEPROM.end();

    Serial.print("set activeConnection to : ");
    Serial.println(activeConnection);

    activeSSID = activeSsid;

    return true;
  }
  else
  {
    Serial.print("Connection to ");
    Serial.print(activeSsid);
    Serial.println(" failed. Trying alternative");

    activeSSID = "";
    return false;
  }
}

/**
 * set wifi sleep mode between data relays to conserve energy
 * @param sleepMode - if true set wifi card to sleep to conserve energy
 */
void setWifiSleepMode(bool sleepMode)
{

  wifiSleeping = sleepMode;

  if (sleepMode)
  {
    WiFi.disconnect();
    WiFi.setSleep(true);
    delay(1000);
    Serial.print("sleep wifi status: ");
    Serial.println(wl_status_to_string(WiFi.status()));
  }
  else
  {
    WiFi.setSleep(false);
    WiFi.reconnect();
    delay(1000);
    Serial.print("awaken wifi status: ");
    Serial.println(wl_status_to_string(WiFi.status()));
    // Check if the connection is still active. if not trigger wait for it to come back online
    if (WiFi.status() != WL_CONNECTED && !wifiPaused)
    {
      Serial.println("Connection lost. Attempting to reconnect in 1 minute ...");
      WiFi.disconnect();
      wifiPaused = true;
      wifiConnected = false;
      connectToWiFi();
    }
  }
}

/**
 * record server ping success in long term memory
 */
void recordPingSucces()
{
  totalServerPings++;
  EEPROM.begin(EEPROM_SIZE);
  EEPROM.writeFloat(eepromPingsAddress, totalServerPings);
  EEPROM.commit();
  EEPROM.end();
  wifiConnected = true;
  serverFailed = false;
}

/**
 * record server ping fails in long term memory
 */
void recordPingFailure()
{
  totalServerPingFails++;
  EEPROM.begin(EEPROM_SIZE);
  EEPROM.writeFloat(eepromFailedPingsAddress, totalServerPingFails);
  EEPROM.commit();
  EEPROM.end();
  wifiConnected = false;
  serverFailed = true;
}

/**
 * ESP32 wifi card statuses
 * @param status
 * @return string
 */
String wl_status_to_string(wl_status_t status)
{

  String response = "";

  switch (status)
  {
  case WL_NO_SHIELD:
    response = "WL_NO_SHIELD";
    break;
  case WL_IDLE_STATUS:
    response = "WL_IDLE_STATUS";
    break;
  case WL_NO_SSID_AVAIL:
    response = "WL_NO_SSID_AVAIL";
    break;
  case WL_SCAN_COMPLETED:
    response = "WL_SCAN_COMPLETED";
    break;
  case WL_CONNECTED:
    response = "WL_CONNECTED";
    break;
  case WL_CONNECT_FAILED:
    response = "WL_CONNECT_FAILED";
    break;
  case WL_CONNECTION_LOST:
    response = "WL_CONNECTION_LOST";
    break;
  case WL_DISCONNECTED:
    response = "WL_DISCONNECTED";
    break;
  }

  return response;
}

// --- Main loop ---
void loop()
{

  int16_t adc0 = ads.readADC_SingleEnded(0);

  // Convert to volts using library helper
  float volts = ads.computeVolts(adc0);

  // Serial.print("A0 Counts: ");
  // Serial.print(adc0);
  // Serial.print(" | Voltage: ");
  // Serial.print(volts, 4);
  // Serial.println(" V");

  float psiRaw = readPsiTrimmed();
  float psi = psiCorrected(psiRaw);

  // EMA smoothing
  psiFiltered = ALPHA * psi + (1.0f - ALPHA) * psiFiltered;

  // Serial
  // Serial.print("Raw PSI: "); Serial.print(psiRaw, 2);
  // Serial.print(" | Corrected PSI: "); Serial.print(psi, 2);
  // Serial.print(" | Smoothed: "); Serial.println(psiFiltered, 2);

  // OLED
  display.clearDisplay();
  display.setTextSize(1);
  display.setCursor(0, 6);

  // Alternate info every 5 seconds
  if (millis() - lastInfoSwitch > 5000)
  {
    showWifiInfo = !showWifiInfo;
    lastInfoSwitch = millis();
  }

  // Alternate info every 10 seconds
  if ((loopCount / 10) % 2 == 0)
  {
    display.println("wifi:" + activeSSID);
  }
  else
  {
    display.println("total pings:" + String((int)totalServerPings));
  }
  display.setTextSize(2);
  display.setCursor(0, 20);
  display.print((int)(psiFiltered + 0.5f));
  display.print(" PSI");

  // Bar graph
  int barW = map((int)(psiFiltered + 0.5f), 0, (int)psiMax, 0, 126);
  display.drawRect(0, 40, 126, 24, SH110X_WHITE);
  display.fillRect(0, 40, barW, 24, SH110X_WHITE);

  display.display();

  /////////////////////
  // SERVER RELAY

  if (!debug && (loopCount >= samplesPerReading) || serverFailed)
  {

    loopCount = 0;

    setWifiSleepMode(false);

    delay(2000);

    // do a heartbeat check to see if we are online...
    https.begin(client, heartbeatUrl);
    httpCode = https.GET();
    if (!httpCode > 0)
    {
      // wifi may not be alive yet so wait 3 seconds
      delay(3000);
    }

    String recordedPressure = String(psiFiltered, 1);

    recordedPressure.trim();

    loopCount = 0;

    client.setInsecure();

    https.begin(client, pressureUrl + recordedPressure);
    httpCode = https.GET();
    if (httpCode > 0)
    {
      payload = https.getString();
      Serial.println("HTTP Response: " + payload);
      recordPingSucces();

      display.clearDisplay();
      display.setTextSize(1);
      display.setCursor(0, 10);
      display.println("Pressure relayed");
      display.display();
    }
    else
    {
      recordPingFailure();
    }
    https.end();

    setWifiSleepMode(true);
  }

  loopCount++;

  delay(1000);
}

Back to top
